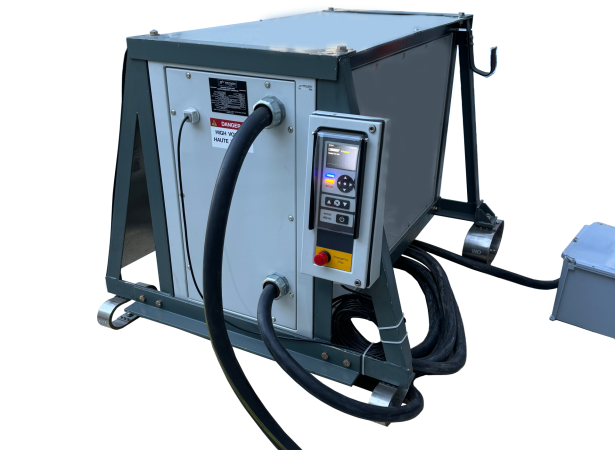

JO3C-RevB Power Unit

The JO3C was originally designed by ITW as a considerably larger military unit. Patlon has since taken over production of the JO3C converter, modifying it to meet navy requirements and endure the demanding conditions of shipboard operation.

JO3C is a family of products, and Patlon’s current Rev B version delivers stronger, more durable performance than the original design, while also offering a smaller, more compact footprint with a less space-demanding design.

Key Features

  • Individual phase regulation at aircraft interface, perfect voltage
    regulation even with unbalanced loads.
  • Meets and exceeds MIL-STD-704F requirements.
  • Total Harmonic Content <3%
  • Airborne Noise <65DB@1M
  • Operating temperatures -40oC to +55oC
  • Relative humidity 0-95%
  • Foundation base frame with resilient mountings
  • Weight with frame and mount 930 lbs.
  • Dimensions unmounted L:1219mm W:483mm H:787mm
  • Weight:
        ◦ 328kg (725 lbs.) No Support Frame / No Cables
        ◦ 420kg (925 lbs.) With mounting frame and shock mounts
  • Digital Information Display
  • Digital diagnostics aid for troubleshooting
  • Building Management System compatible
  • Soft Start Feature eliminates inrush current
  • EMI Hardened Shell
  • INPUT
    • Input voltage: 400 to 500Vac
    • Input frequency: 45 to 65Hz
    • Inrush current: None (0)
    • FLA: 30kVA- 45 Amps +/-15%
    45kVA- 65 Amps +/-15%
    50kVA- 73 Amps +/-15%
    60kVA- 88 Amps +/-15%
    90kVA- 130 Amps +/-15%
